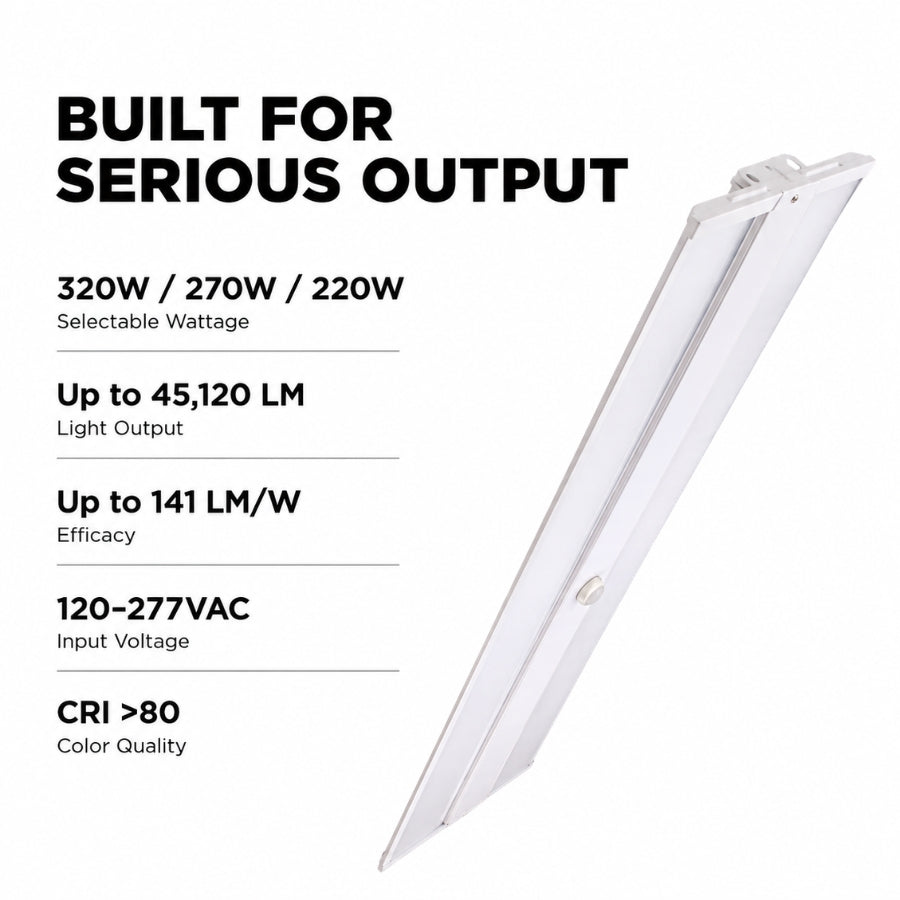

320w linear led high bay lights​ shown at an angle on a white background, with large text listing product specs: 320W / 270W / 220W selectable wattage, up to 45,120 LM light output, up to 141 LM/W efficacy, 120-277VAC input voltage, and CRI >80 color quality.

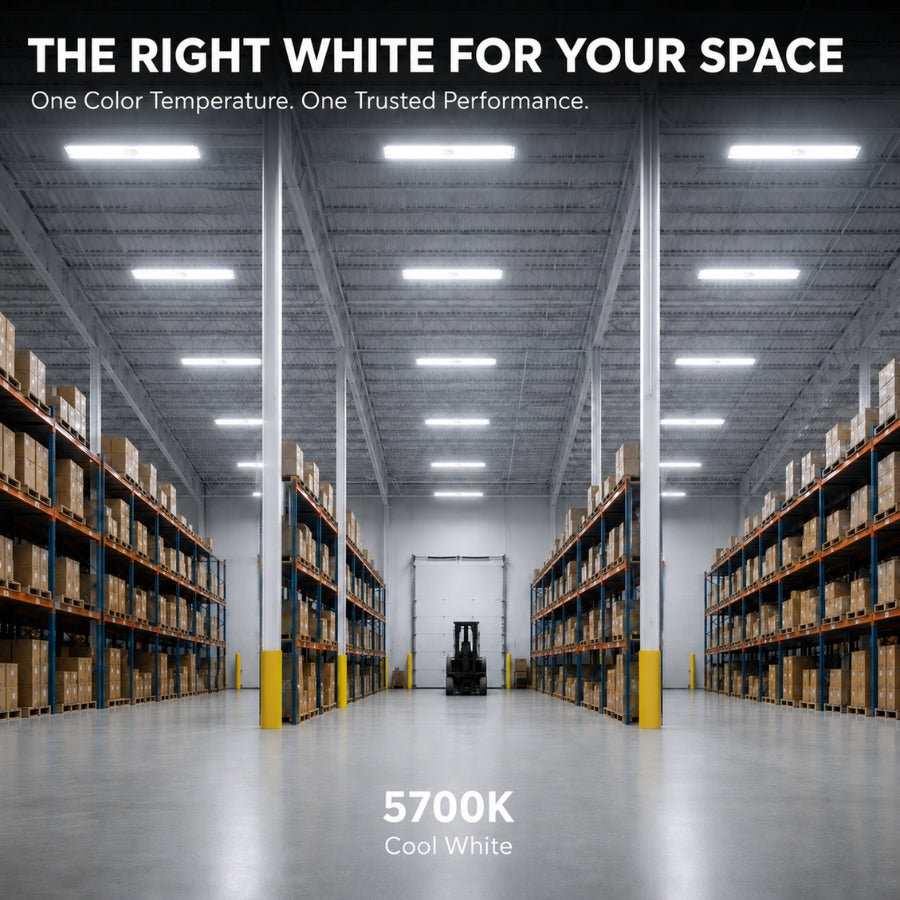

A warehouse aisle with tall shelving, boxes, and bright overhead fluorescent lighting. Text at the top reads 'THE RIGHT WHITE FOR YOUR SPACE' and at the bottom reads '5700K Cool White', suggesting a lighting product or color temperature demonstration.

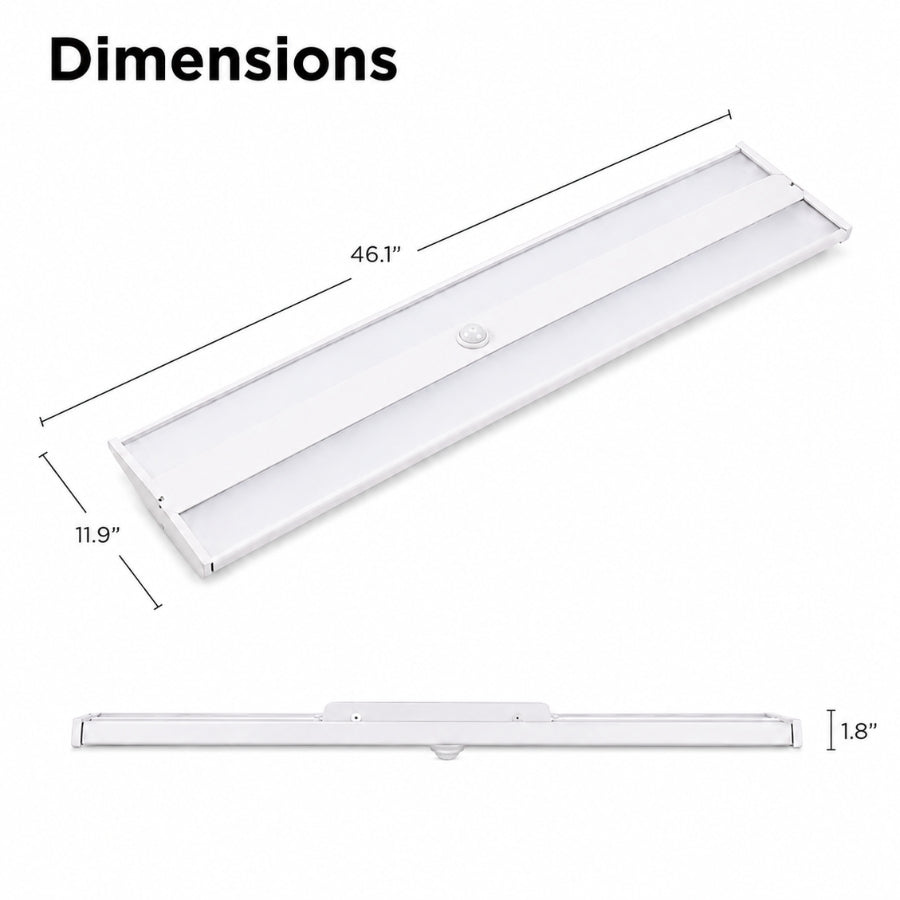

A white linear LED light fixture shown with dimension annotations on a light gray background, including a top view labeled 46.1 inches by 11.

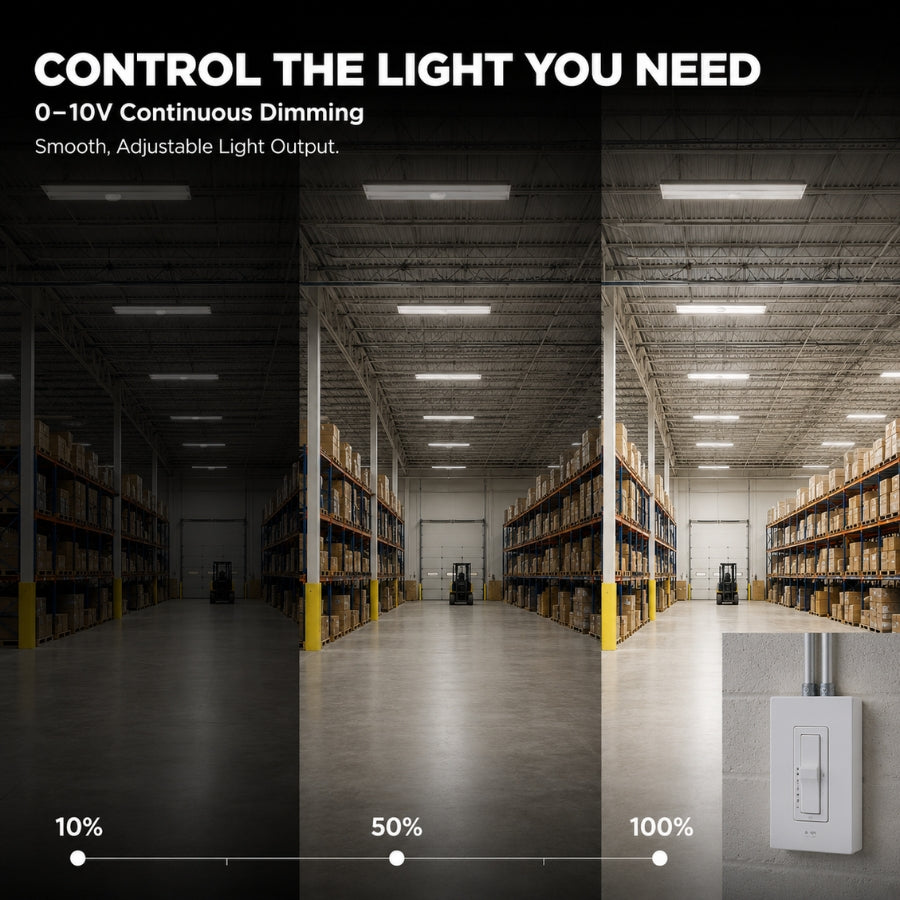

A promotional graphic showing a warehouse aisle with three side-by-side panels demonstrating light levels at 10%, 50%, and 100%, with text reading 'CONTROL THE LIGHT YOU NEED' and '0-10V Continuous Dimming'. A white wall light switch is shown in the bottom right corner.

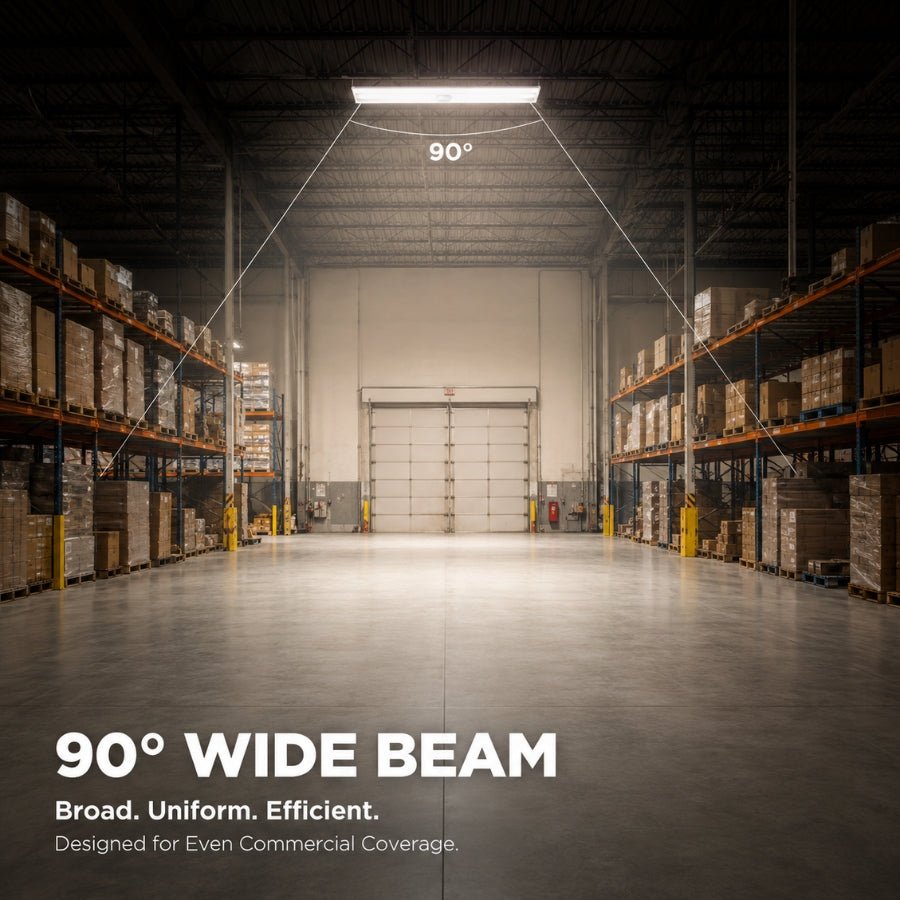

A warehouse aisle with tall shelving on both sides, a large garage-style door at the far end, and overlaid text reading '90° WIDE BEAM' with a diagram showing a light beam spreading 90 degrees from a ceiling fixture.

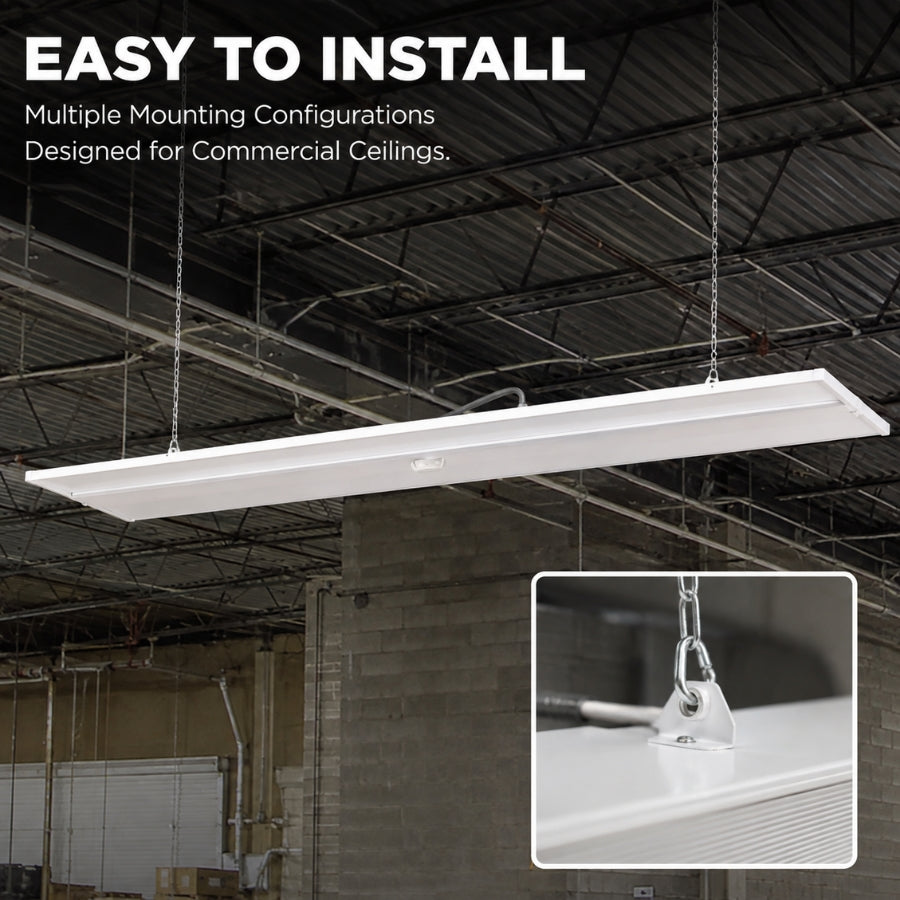

A long rectangular white commercial ceiling light fixture suspended by chains in an industrial warehouse ceiling, with text reading 'EASY TO INSTALL' and a small inset showing a mounting hardware detail.

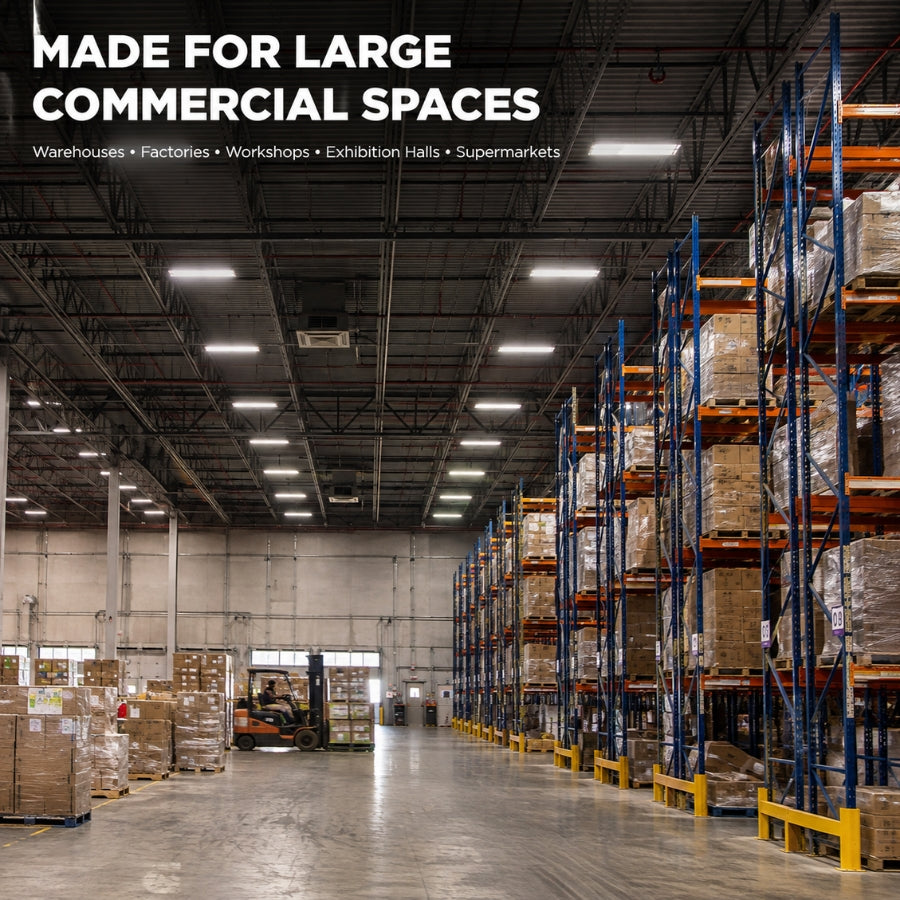

A wide view of a large warehouse interior with tall blue and orange pallet racks filled with boxes, a concrete floor, overhead fluorescent lighting, and text at the top reading 'MADE FOR LARGE COMMERCIAL SPACES' with smaller text listing warehouses, factories, workshops, exhibition halls, and supermarkets.

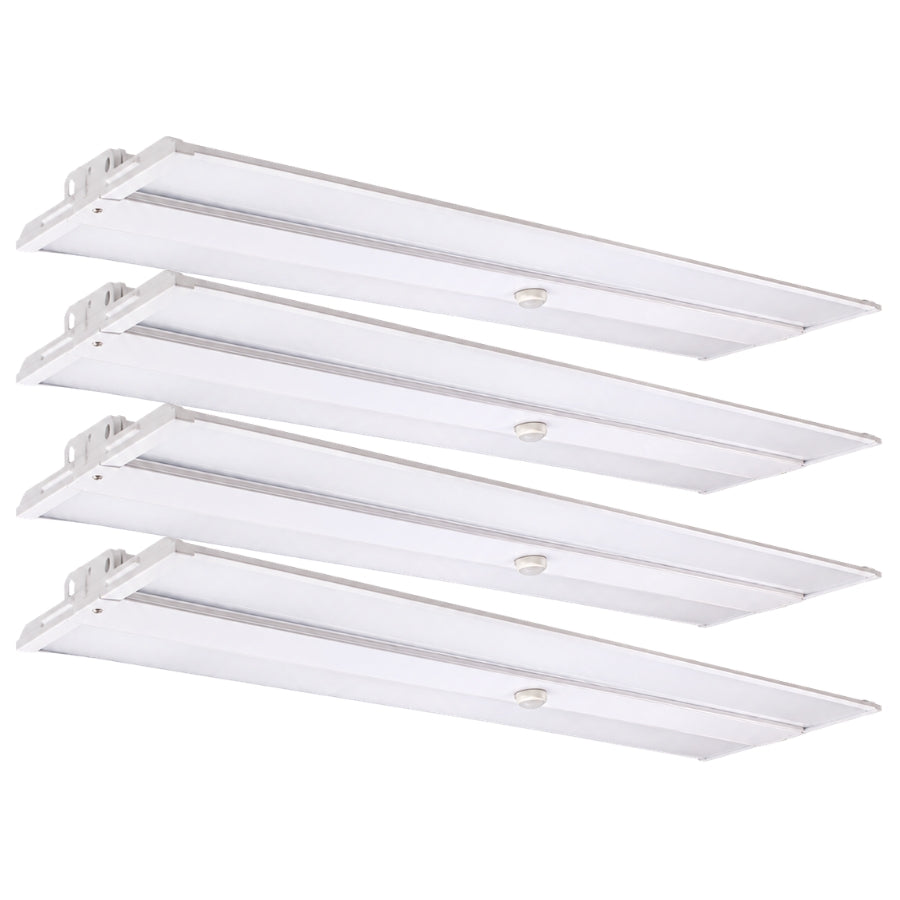

Four white 320w linear led high bay light fixture​ arranged in a staggered stack on a solid white background.

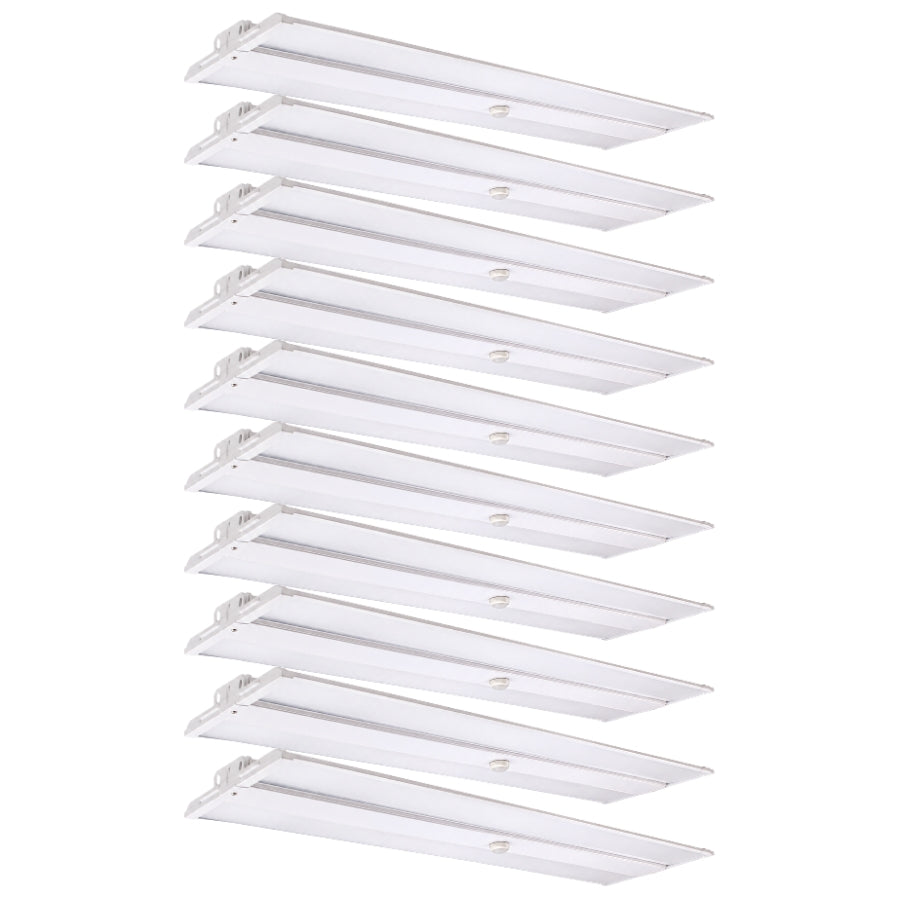

10 pack 320w linear led high bay light fixture​, with bulk buying options at switchtoled.com

SwitchToLED

320W LED Linear High Bay Light with PIR Motion Sensor – 45,120 Lumens, 5700K, 220W/270W/320W Selectable, 120–277V, 0–10V Dimmable, DLC Certified & UL/cUL Listed, 4FT Warehouse Lighting

SKU: STL-01170
$94.28
$103.71
$94.28
Size: 1 PACK
Get additional discounts on orders over $500 with SwitchToLED Learn more
Subtotal: $94.28

Estimated Shipping Widget will be displayed here!

Call to Order: (470) 939-0782

REQUEST CONTRACTOR / BULK PRICING

Submit your request and our team will contact you shortly.

By submitting you authorize SwitchToLED to contact you via email, phone, or SMS.

Free Shipping

Free shipping on orders over $99

Ships within 1 business day

Volume Discounts

automatically applied for orders $500+
320w linear high bay led lighting at switchtoled.com

320W LED Linear High Bay Light with PIR Motion Sensor – 45,120 Lumens, 5700K, 220W/270W/320W Selectable, 120–277V, 0–10V Dimmable, DLC Certified & UL/cUL Listed, 4FT Warehouse Lighting

$103.71 $94.28

320W LED Linear High Bay Light with PIR Motion Sensor – 45,120 Lumens, 5700K, 220W/270W/320W Selectable, 120–277V, 0–10V Dimmable, DLC Certified & UL/cUL Listed, 4FT Warehouse Lighting

$103.71 $94.28
Size: 1 PACK

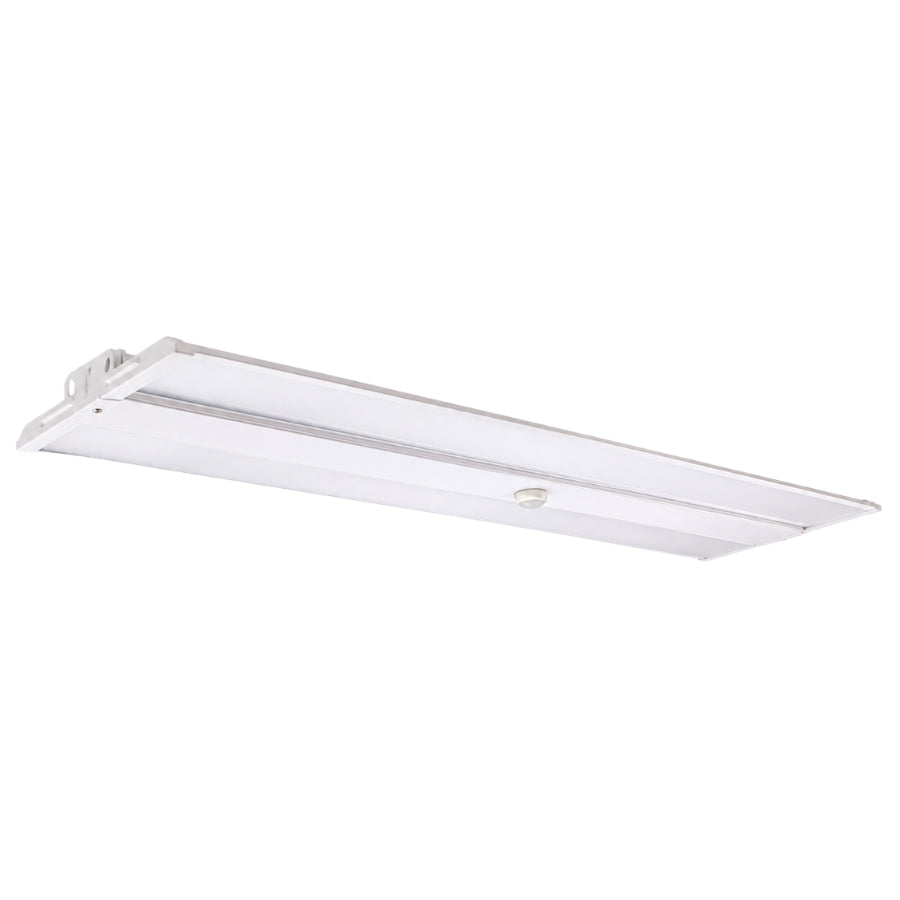

SwitchToLED 4FT LED Linear High Bay with PIR Motion Sensor

Light your warehouse, workshop or commercial facility with the SwitchToLED 4FT LED Linear High Bay with an included PIR motion sensor. This fixture delivers 45,120 lumens at 320W with 5700K bright white light.

Choose 220W, 270W or 320W to match your project’s lighting requirements. The PIR sensor detects movement to support occupancy-based lighting control, while 0–10V dimming provides additional brightness adjustment with compatible controls.

Key Features

  • PIR motion sensor included: Supports lighting control based on occupancy.

  • Selectable wattage: Choose 220W, 270W or 320W.

  • High-output lighting: Rated 45,120 lumens at 320W.

  • 5700K bright white: For warehouse and commercial work areas.

  • 120–277V input: Suitable for compatible commercial electrical systems.

  • 0–10V dimming: Adjust brightness with compatible controls.

  • UL/cUL listed and DLC certified.

  • 5-year warranty.

Product Specifications

 Specification  Details
Brand SwitchToLED
Product Type LED Linear High Bay with PIR Motion Sensor
Nominal Size 4FT
Motion Sensor PIR sensor included
Selectable Wattage 220W / 270W / 320W
Rated Light Output 45,120 lumens at 320W, ±10%
Color Temperature 5700K Bright White
Input Voltage 120–277V AC, 50/60Hz
Dimming 0–10V with compatible controls
Rated Efficiency 141 lumens per watt at 320W, ±3%
Color Rendering (CRI) Greater than 80
Beam Angle 90°
LED Brand Lumileds
Lens Matte
Housing Material Iron
Certifications UL / cUL / DLC
Location Rating Indoor damp locations, IP20
Operating Temperature With Motion Sensor −30°C to 50°C
Emergency Backup Optional; not included as standard
Warranty 5 years

Lighting for Commercial Projects

Suitable for warehouses, factories, workshops, exhibition halls and large retail spaces. Select the wattage to suit the lighting layout and configure the PIR sensor according to the supplied sensor instructions.

This fixture is rated for indoor damp locations. Do not expose it to rain, water spray or washdown conditions.

Bulk Buying & Contractor Pricing

Ordering fixtures for a warehouse upgrade or commercial project? Bulk buying options and contractor pricing are available.

Send your fixture quantity, delivery ZIP code, ceiling height and project timeline. Specify that you need the PIR motion sensor version, plus any emergency backup requirements.

Request Bulk & Contractor Pricing

Frequently Asked Questions

Is the PIR motion sensor included?
Yes. This listing includes the PIR motion sensor configuration.

How does the motion sensor control the light?
The PIR sensor detects movement to support occupancy-based operation. Detection coverage, timing and standby behavior depend on the installed sensor and its settings. Refer to the supplied sensor instructions.

Can I change the wattage?
Yes. The fixture offers 220W, 270W and 320W settings. Have your installer select the appropriate setting for your project.

How bright is the fixture?
It delivers a rated 45,120 lumens at 320W and 5700K, with a ±10% tolerance. Output is lower at reduced wattage settings.

Is the light color adjustable?
This listing is for 5700K bright white. Field-selectable color temperature is not confirmed for this model.

Can I connect it to a dimming system?
The fixture supports 0–10V dimming. Ask your installer to confirm compatibility and wiring with the included sensor and your lighting controls.

Does it include emergency battery backup?
Emergency backup is optional and is not included as standard. Contact us to confirm availability before ordering.

How many fixtures will my project need?
The quantity depends on floor area, ceiling height, required brightness and fixture spacing. Sensor coverage should also be considered when planning the layout.

Can I request a bulk quote?
Yes. Send SwitchToLED your quantity, delivery details and project requirements for contractor pricing.

Order the PIR motion sensor version online or request a bulk quote for your project.
