LED Dimmer Switch – 96W 2-in-1 Mini Driver, ON/OFF + Dimmer, 24V ±0.5V Output, UL FCC CE Class 2 Certified, Compact AC120V Design
Vendor:
SwitchtoLED
Availability:
In Stock
- $71.90
$79.09- $71.90
- Unit price
- per
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability

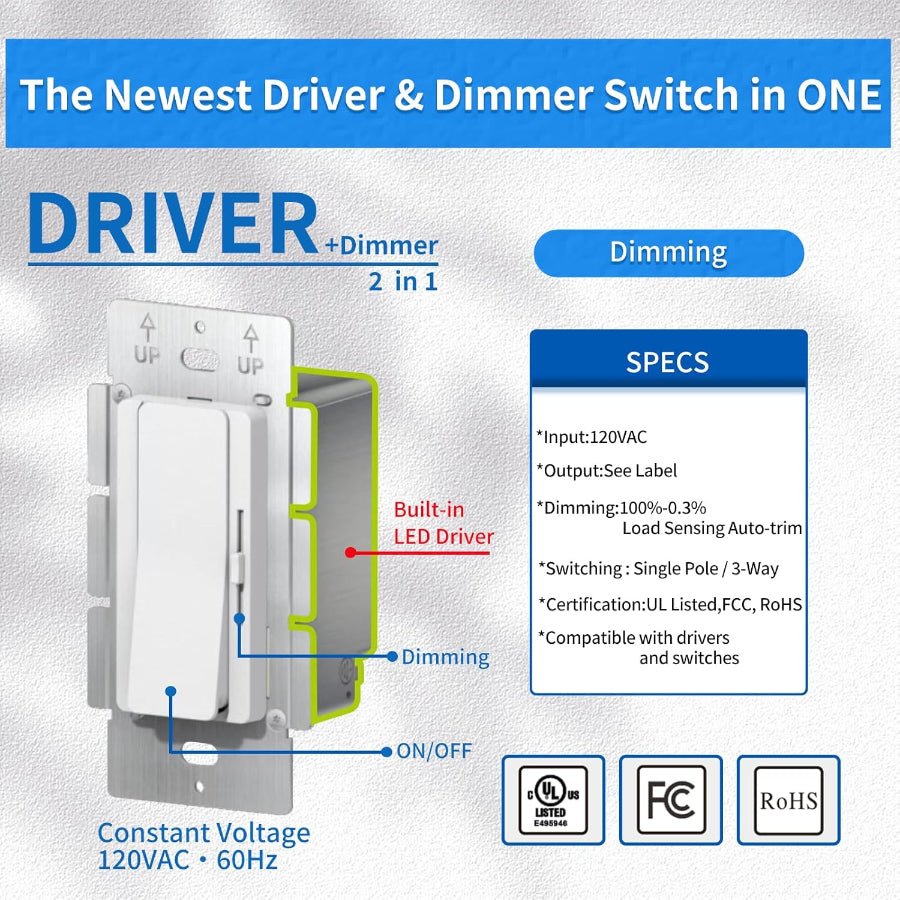

Upgrade your lighting system with the SwitchToLED Dimmer and Driver Switch in One – a compact, powerful solution that merges a dimmer switch and LED driver into a single, space-saving unit. Perfect for low-voltage 24V LED lighting, this 96W Class 2 driver delivers flicker-free dimming and dependable power, making it ideal for LED strip lights, cabinet lighting, and commercial displays.
Unlike standard dimmable light switches, this all-in-one device provides smooth brightness control from 0.3% to 100%, utilizing a 20kHz PWM output and a precise gamma 2.2 curve for high color accuracy and performance. With universal compatibility, high power efficiency, and UL, FCC, and CE certifications, it’s built for both professional-grade and DIY installations.
Key Benefits of the 96W 24V LED Dimmer Switch
-
Integrated Dimmer + Driver: A dual-purpose solution that simplifies your LED setup with fewer components.
-
Precision Dimming Range: Achieve smooth transitions with 0.3% to 100% dimming – no flicker, no hum.
-
Energy-Efficient Design: Features active power factor correction (PFC) with >0.99 PF and <10% THD for stable power delivery.
-
Certified Safe & Reliable: Fully UL, FCC, and CE listed, with short circuit, overload, and over-temperature protections.
-
Perfect for Any Project: Ideal for dimmer switches for LED lights in homes, restaurants, display cabinets, and offices.
Product Specifications
| Feature | Details |
|---|---|
| Brand | SwitchToLED |
| Product Type | Dimmer and Driver Switch in One |
| Input Voltage | 120V AC |
| Output Voltage | 24V DC ±0.5V |
| Power Rating | 96W |
| Current Rating | 4 Amps |

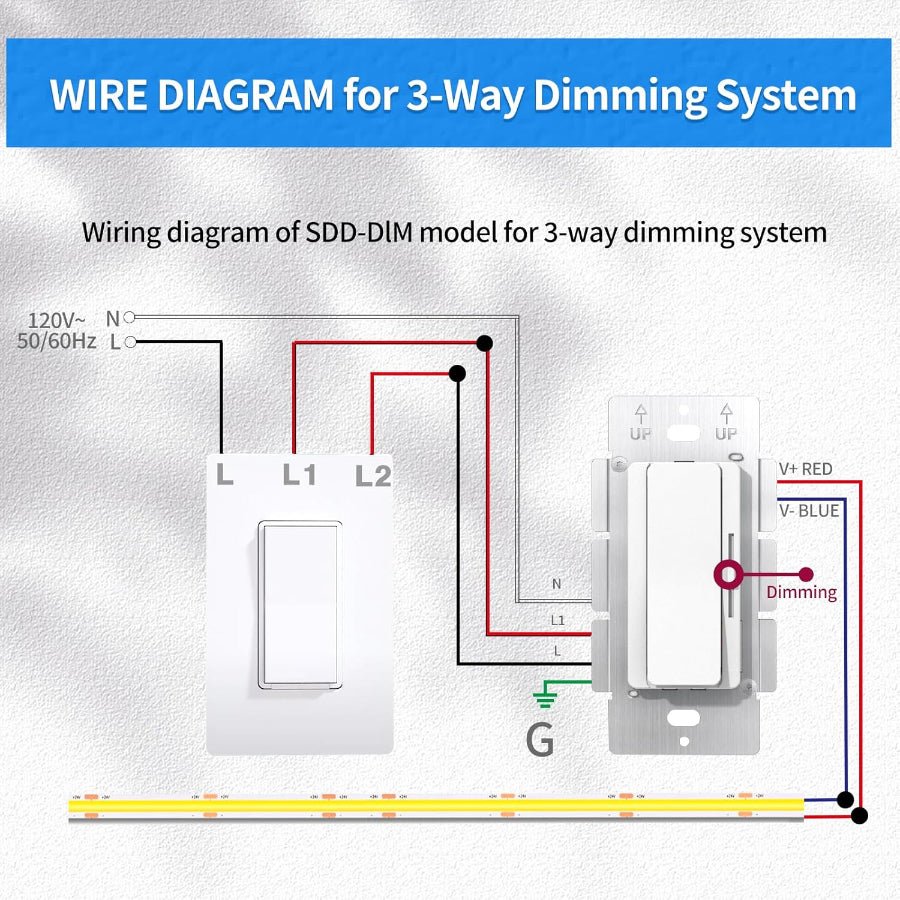

| Circuit Type | 3-Way |
| Dimming Range | 0.3% – 100% |
| Power Factor | >0.99 |
| THD | <10% @ Max Load |
| Output Type | 20kHz PWM, Gamma 2.2 Curve |
| Operation Mode | ON-OFF |
| Contact Type | Normally Closed |

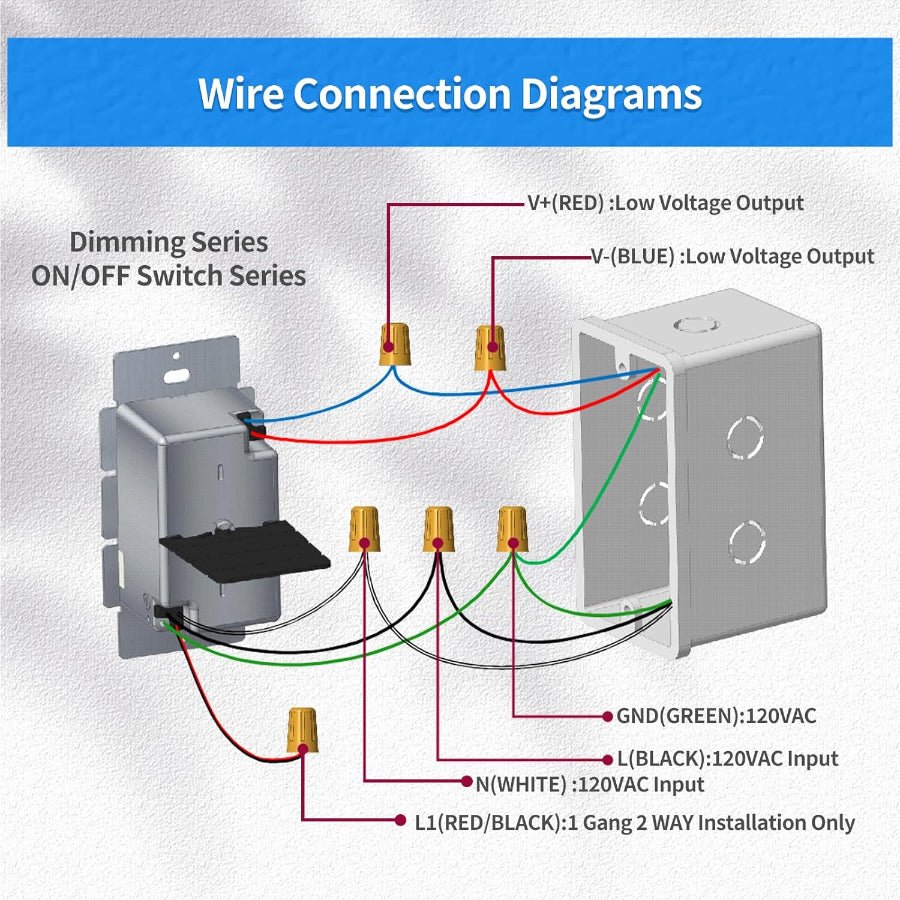

| Connector Type | Screw Terminal |
| Mounting Type | Wall Mount |
| Material | Plastic |
| Certifications | UL, FCC, CE, Class 2 |
| Protection Features | Short Circuit, Overload, Over Temperature |
| Dimensions | 4.13 x 2.13 x 2 inches |
| Weight | 12.95 ounces |
| Suitable For | Dry and Damp Locations |
| Warranty | 5 Years |
Why Professionals Choose the SwitchToLED 2-in-1 Dimmer Switch for LED Lights
Whether you're upgrading a home setup or designing a commercial LED lighting project, this 24V LED dimmer switch brings modern efficiency and elegant control to your space. Designed to meet strict safety standards and provide noise-free, flicker-free performance, it's the smart choice for both contractors and homeowners seeking reliability and simplicity.
Ideal Uses:
-
LED strip lighting (24V)
-
Display case and shelf lights
-
Home accent lighting
-
Retail and hospitality installations
-
Commercial under-cabinet systems
Looking for a compact, reliable, and efficient LED dimmer switch with a built-in driver? Switch to SwitchToLED – where performance meets innovation.
