Description

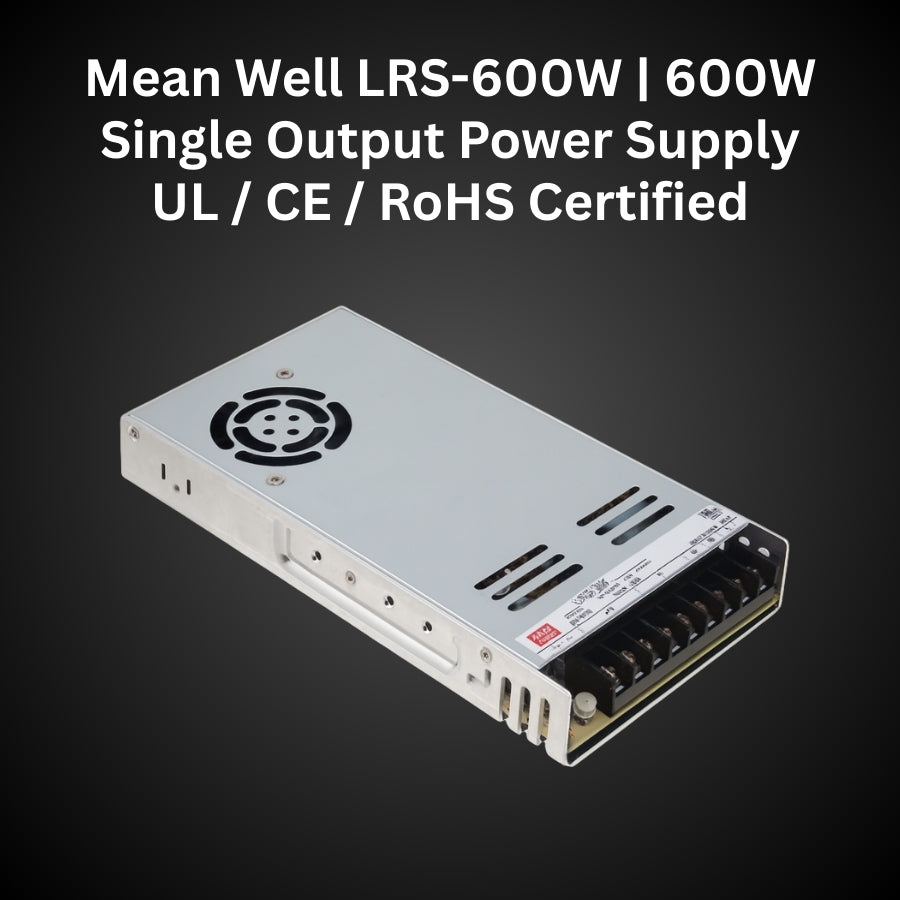

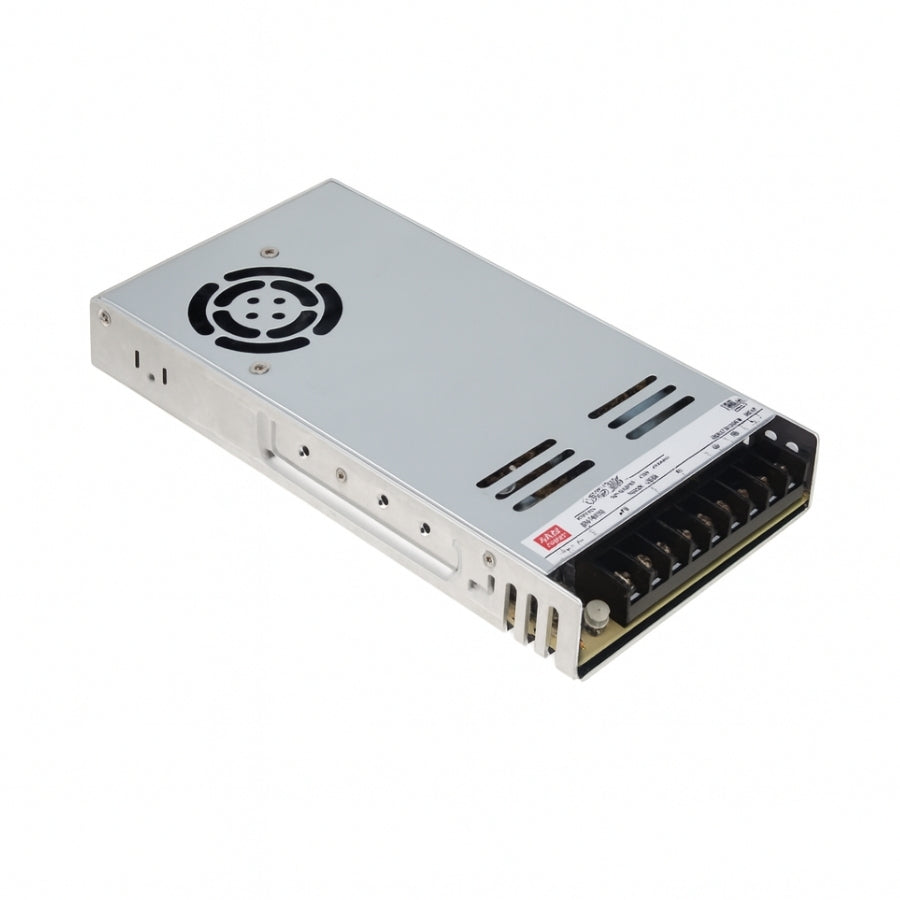

The SwitchToLED LRS-600 600W Single Output Switching Power Supply delivers high-efficiency, reliable performance for industrial automation, control systems, and demanding electronic applications. Offering up to 92% efficiency and multiple output voltage options (5V, 12V, 15V, 24V, 27V, 36V, 48V), this compact power supply ensures stable operation even under heavy load. Equipped with comprehensive protection features—including short circuit, overload, over-voltage, and over-temperature safeguards—the LRS-600 enhances system safety and reduces downtime. Its slim 41mm low-profile design with forced air cooling and intelligent fan ON/OFF control optimizes heat dissipation and operational reliability. With a wide selectable input voltage range (90–264VAC), vibration resistance, and an MTBF exceeding 1.5 million hours, this unit is built for long-term dependability. Accessories like the TBC-09 terminal block cover and MHS-012 mounting kits simplify installation. Backed by UL/CE/RoHS certifications and a 3-year warranty, the SwitchToLED LRS-600 provides unmatched quality for professional applications.

Technical Details

 Specification  Description
Brand SwitchToLED
Model Series LRS-600
Rated Power 600W

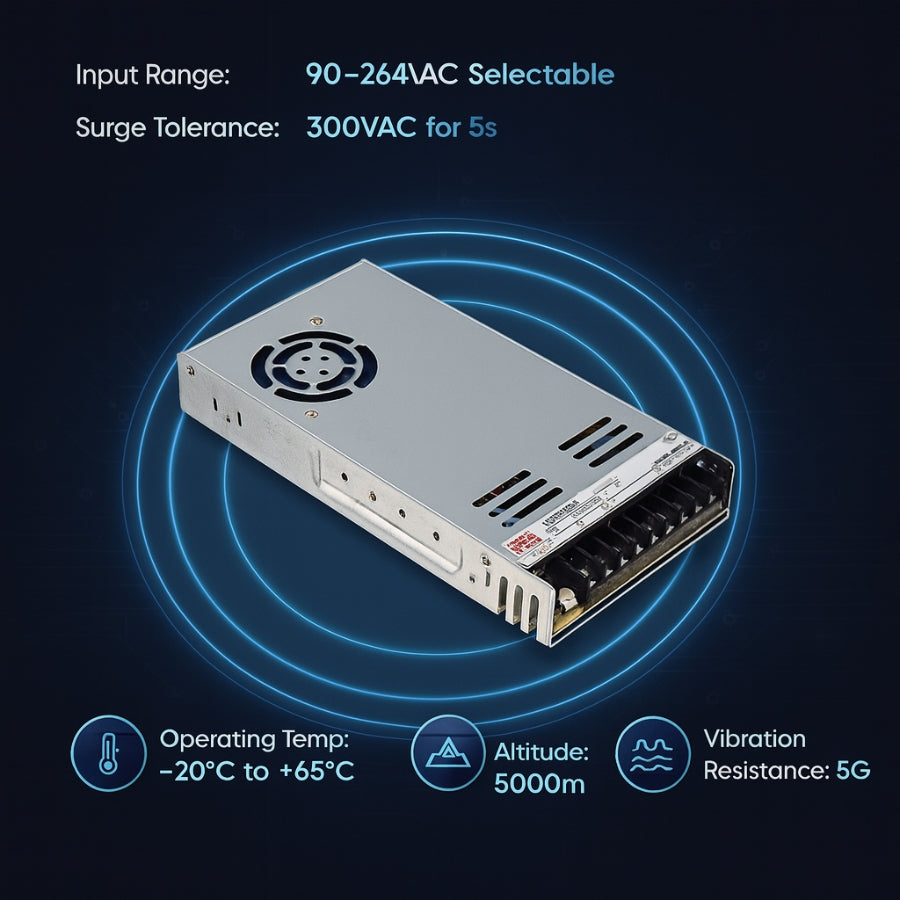

Input Voltage 90–132VAC / 180–264VAC (switch selectable)
Frequency Range 47–63Hz
Output Voltages 5V, 12V, 15V, 24V, 27V, 36V, 48V

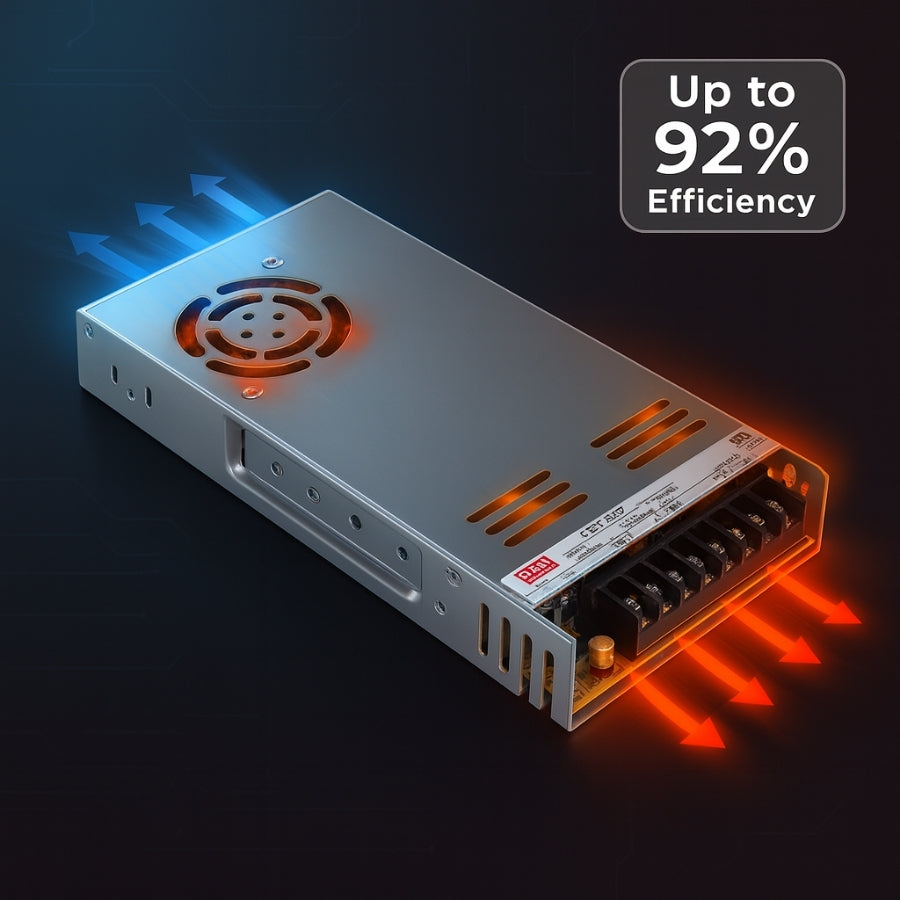

Efficiency (Typical) 86%–92%

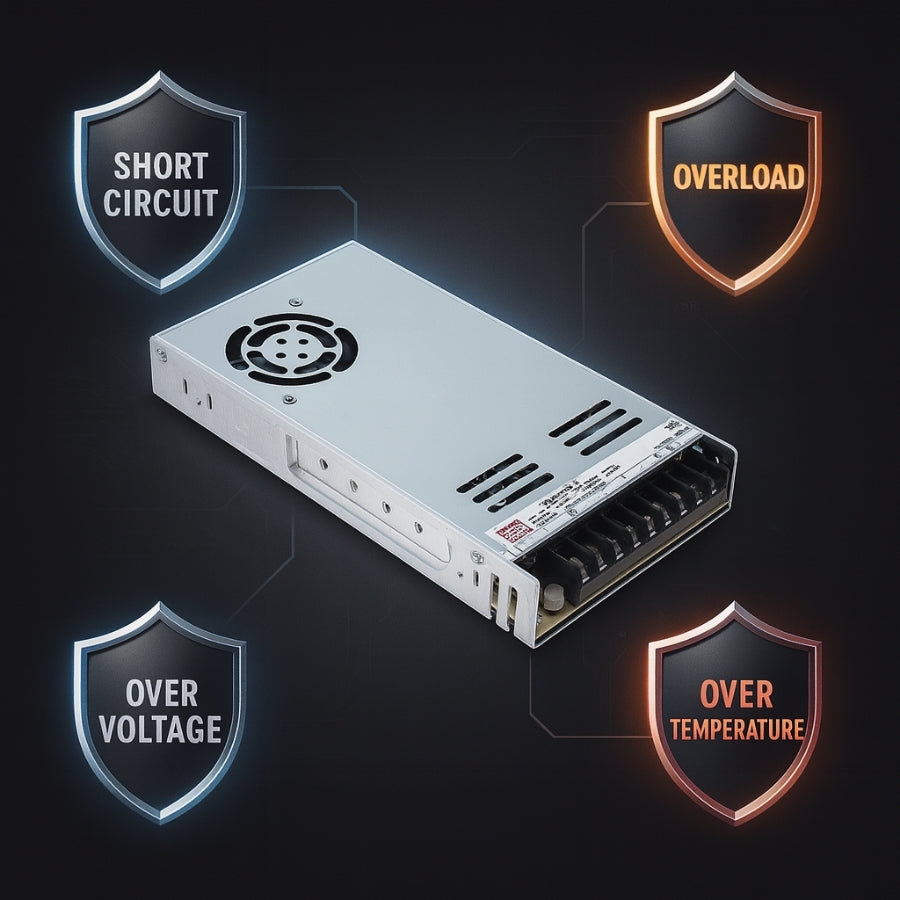

Protections Short Circuit, Overload, Over Voltage, Over Temperature
Cooling Forced Air with Fan ON/OFF Control
Operating Temperature -20°C to +65°C
Operating Altitude Up to 5000m
Vibration Resistance 5G / 10–500Hz

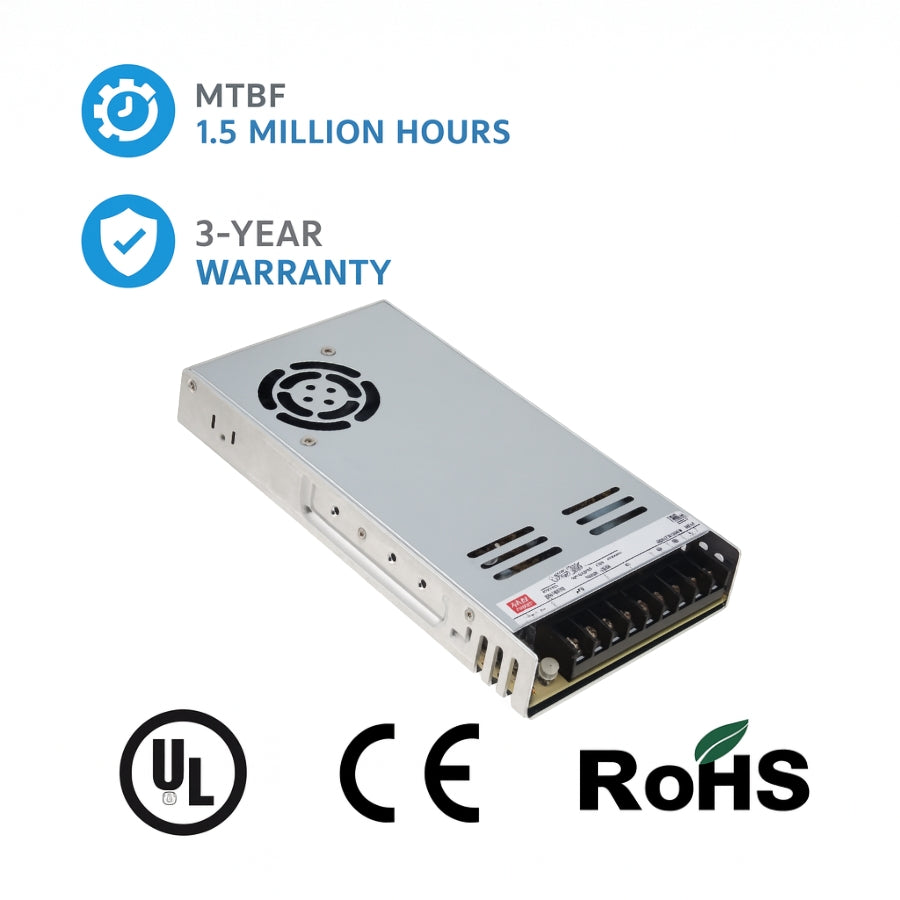

MTBF 1,533,400 hrs (Telcordia SR-332)

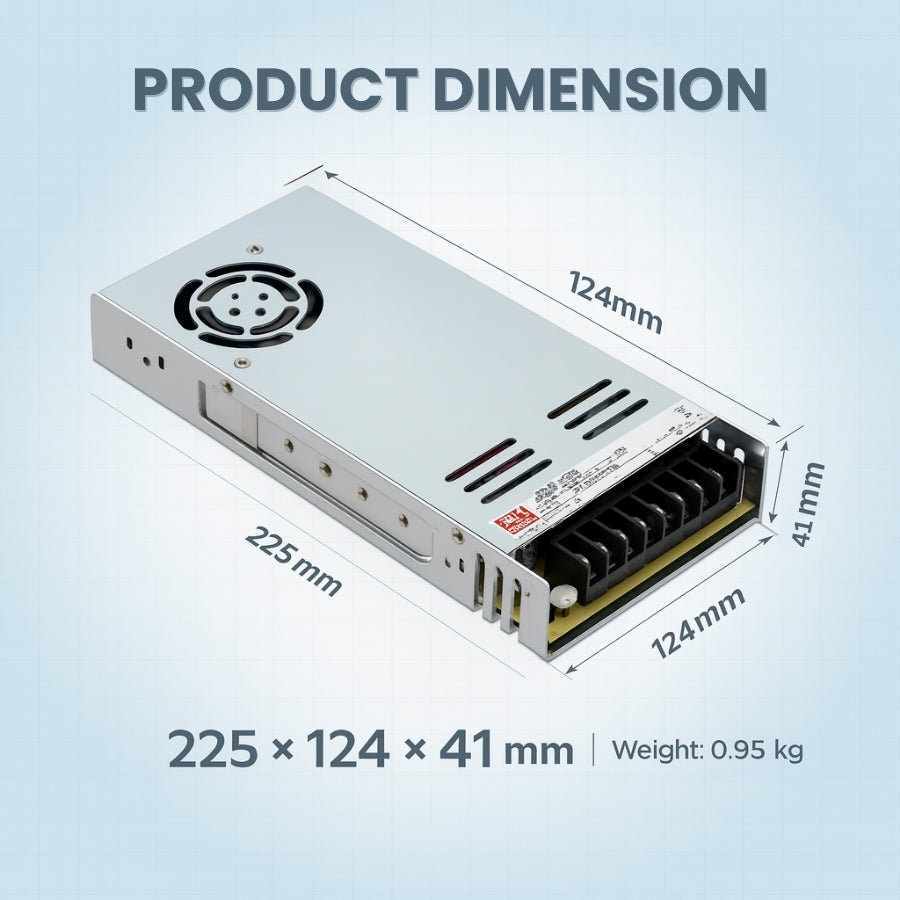

Dimensions (L × W × H) 225 × 124 × 41 mm
Weight 0.95 kg
Included Accessories TBC-09 Terminal Block Cover, 4 × MHS-012 Mounting Kits
Certifications UL62368-1, IEC62368-1, EN61558-1/2-16, IS13252, RoHS
Warranty 3 Years
