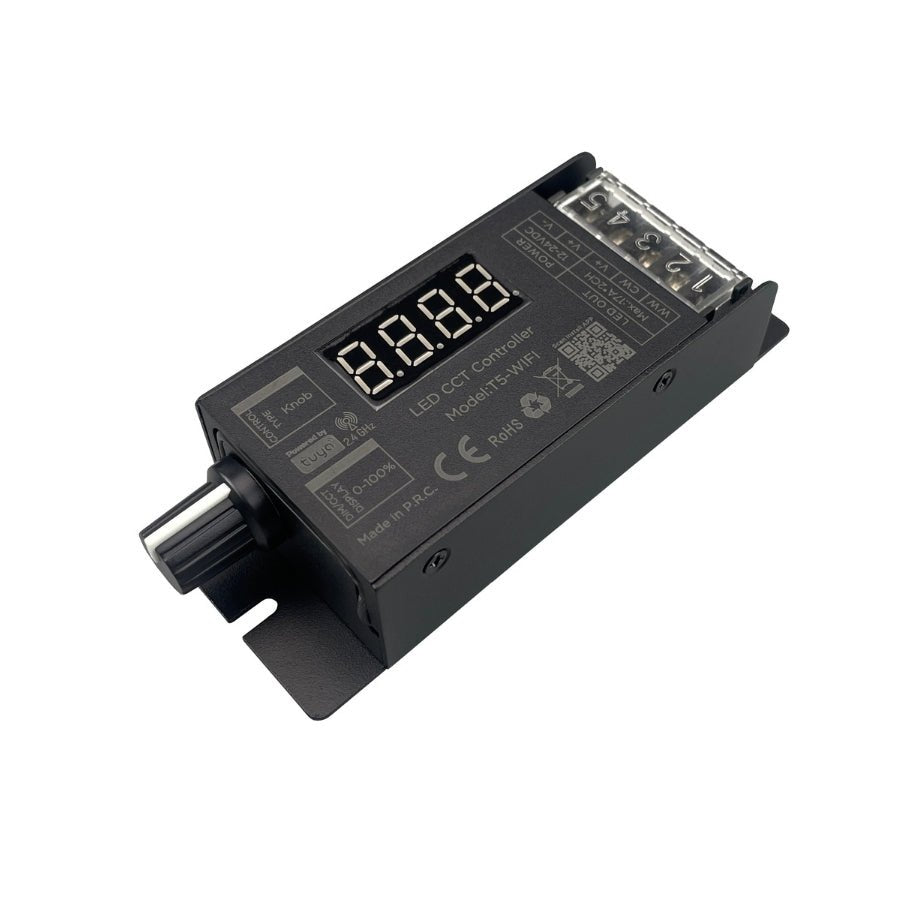

switchtoled cct led controller​

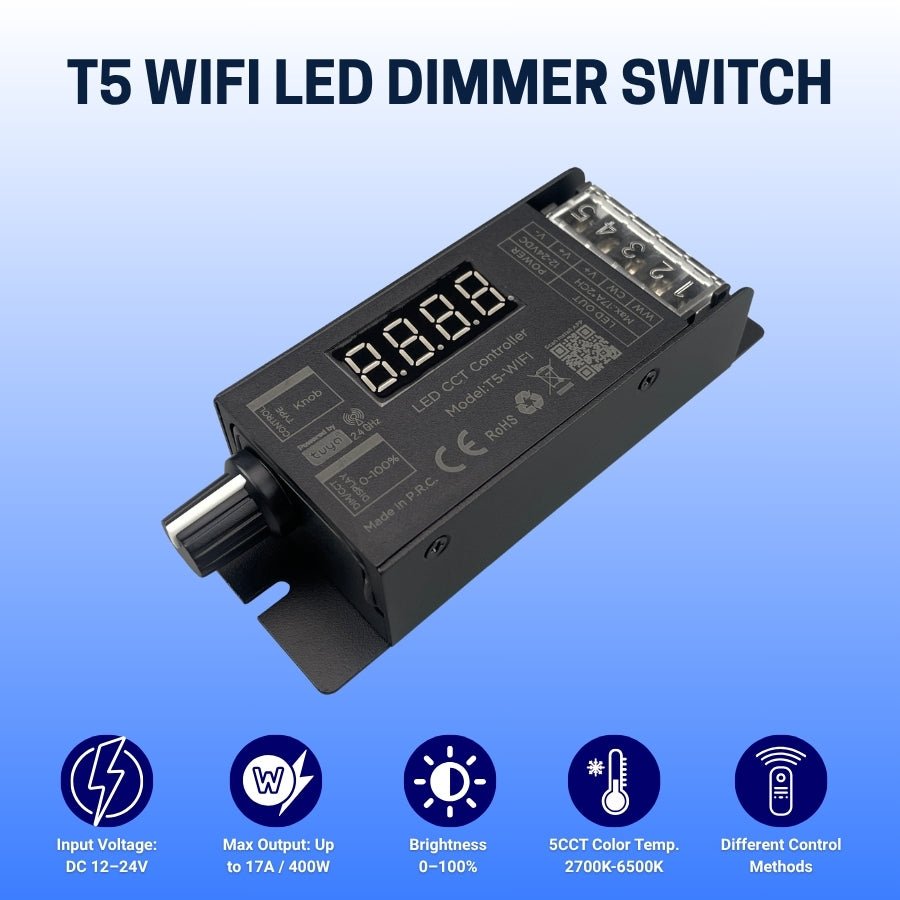

switchtoled cct led strip controller​ input voltage DC 12-24V, 100% brightness and different control methods

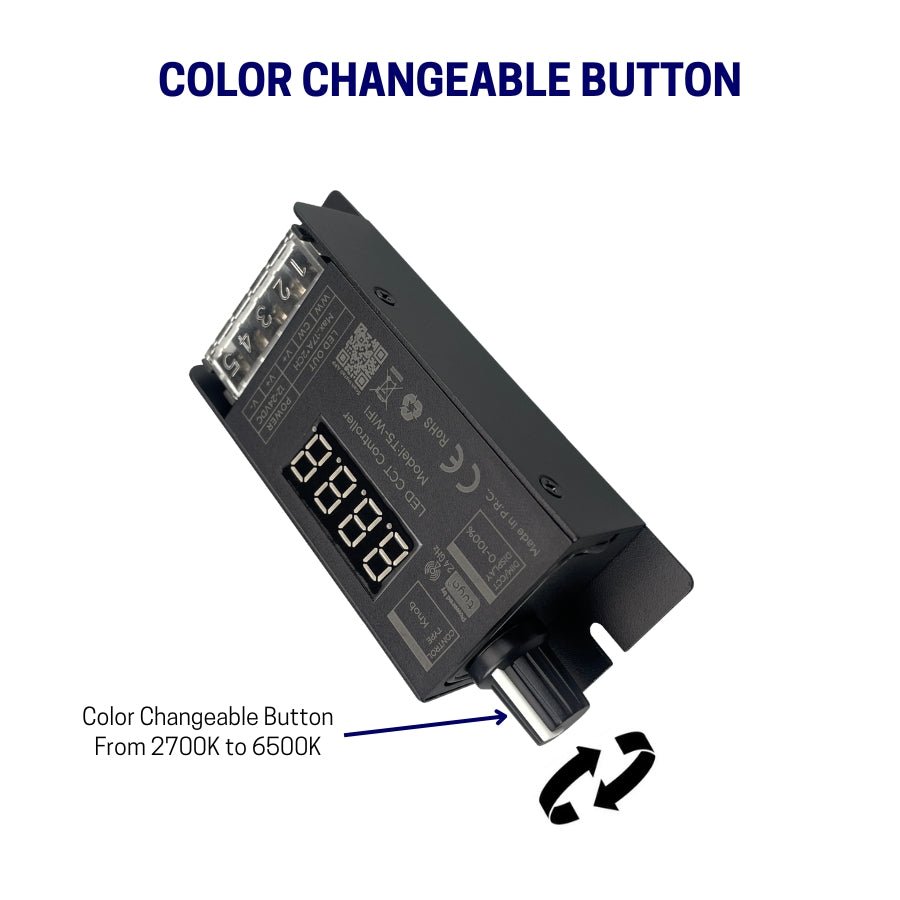

switchtoled cct led strip controller​ color changeable button

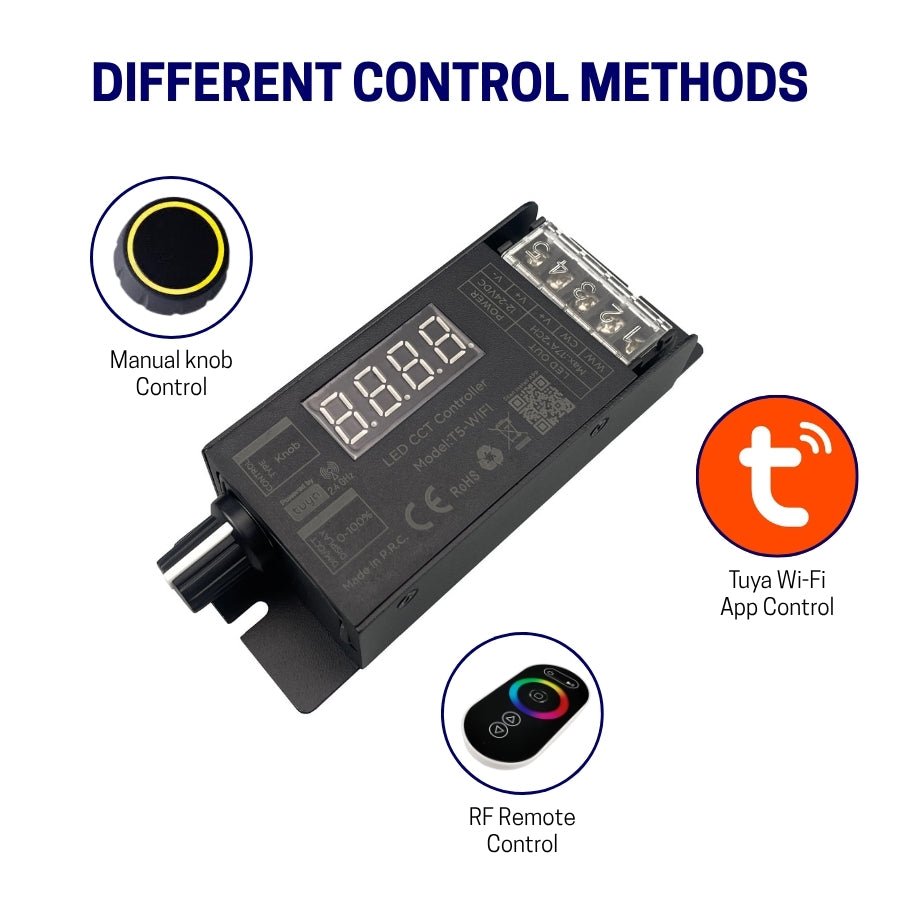

switchtoled rgb cct led controller with different control methods

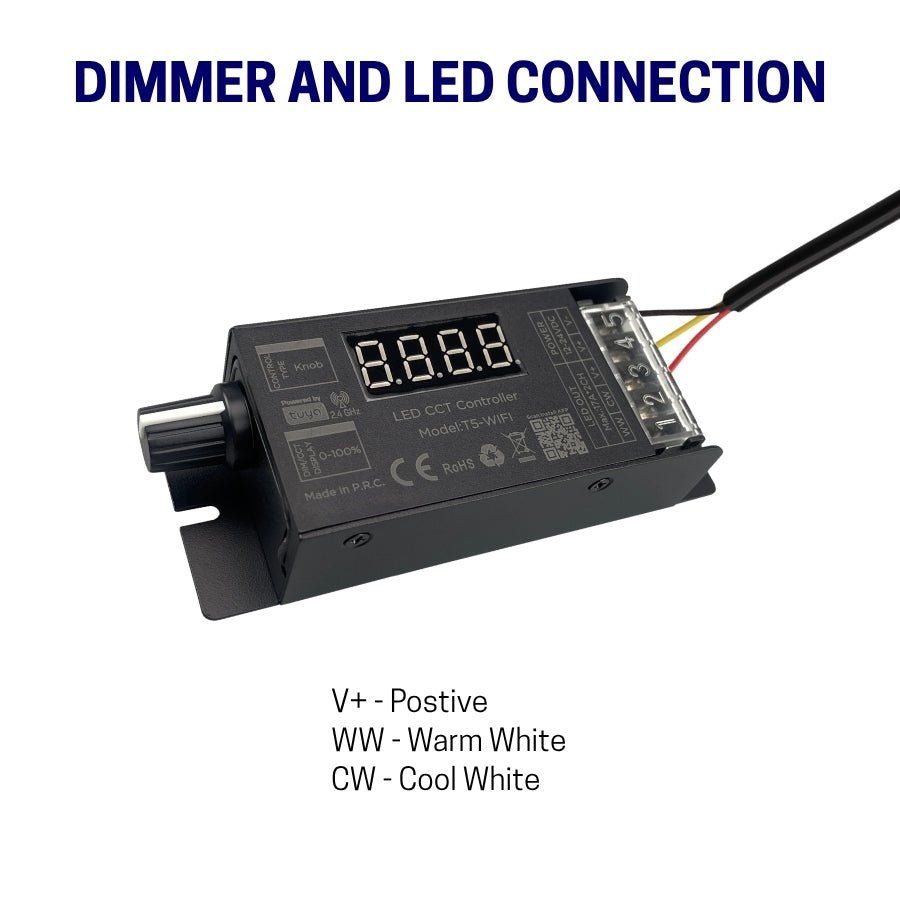

switchtoled rgb cct led controller with dimmer and led connection

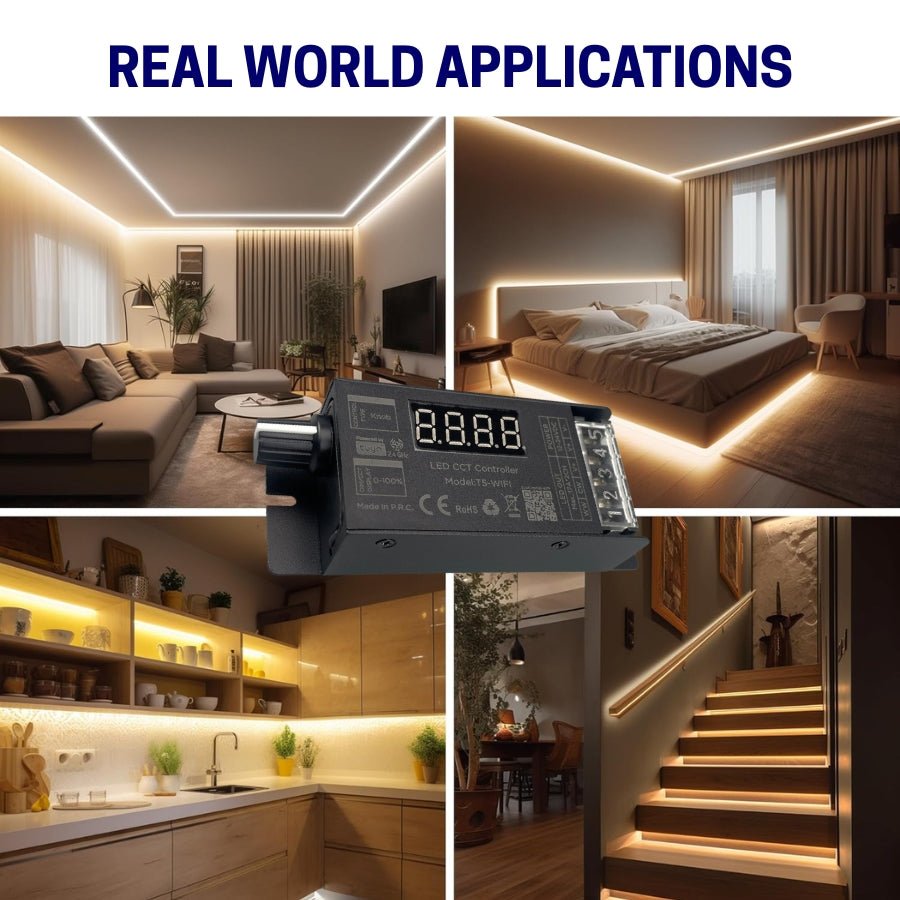

real world application of rgb cct led controller at switchtoled
switchtoled cct led controller​
switchtoled cct led strip controller​ input voltage DC 12-24V, 100% brightness and different control methods
switchtoled cct led strip controller​ color changeable button
switchtoled rgb cct led controller with different control methods
switchtoled rgb cct led controller with dimmer and led connection
real world application of rgb cct led controller at switchtoled

SwitchToLED

T5-WIFI LED Dimmer Switch 400W DC12-24V Dual Channel with Tuya Smart App Control, Adjustable PWM Frequency, Knob and RF Remote, Alexa and Google Assistant Compatible

SKU: STL-0210
$30.00
$33.00
$30.00
Get additional discounts on orders over $500 with SwitchToLED Learn more
Subtotal: $30.00

Estimated Shipping Widget will be displayed here!

Tap to Call
switchtoled cct led controller​

T5-WIFI LED Dimmer Switch 400W DC12-24V Dual Channel with Tuya Smart App Control, Adjustable PWM Frequency, Knob and RF Remote, Alexa and Google Assistant Compatible

$33.00 $30.00
switchtoled cct led controller​
switchtoled cct led strip controller​ input voltage DC 12-24V, 100% brightness and different control methods
switchtoled cct led strip controller​ color changeable button
switchtoled rgb cct led controller with different control methods
switchtoled rgb cct led controller with dimmer and led connection
real world application of rgb cct led controller at switchtoled

T5-WIFI LED Dimmer Switch 400W DC12-24V Dual Channel with Tuya Smart App Control, Adjustable PWM Frequency, Knob and RF Remote, Alexa and Google Assistant Compatible

$33.00 $30.00
Description

T5-WIFI LED Dimmer Switch by SwitchToLED

Smart Control | 400W Max | DC12-24V | Dual Channel | Tuya App | Voice Assistant Compatible

Upgrade your lighting experience with the T5-WIFI LED Dimmer Switch – a powerful, smart, and user-friendly solution designed for both residential and commercial LED lighting systems. Built with advanced technology, this dual-channel dimmer supports DC12–24V input, handles up to 400W, and offers multiple control options including manual knob, RF remote, WiFi via Tuya Smart App, and voice assistants like Alexa and Google Assistant.

Key Features:

Dual Channel Output – Supports both Warm White (WW) and Cool White (CW) channels.
Smart App Control – Easily manage brightness, color temperature, timers, and group control using the Tuya Smart or Smart Life App.
Voice Control Ready – Seamlessly integrate with Amazon Alexa, Google Assistant, and Yandex Alice.
Adjustable PWM Frequencies – Choose from 6 PWM dimming frequencies (500Hz to 15.6kHz) for optimal performance and flicker-free lighting.
Multiple Control Options – Adjust via manual knob, RF remote control, or mobile app.
Digital Display – Shows brightness (d000–d100) and color temp (C000–C100) settings clearly.
Memory Function – Remembers last settings even after power-off.
Compact & Durable – Compact design with external antenna for stable signal and better wireless range.

Technical Specifications Table

Specification Details
Brand SwitchToLED
Model T5-WIFI
Input Voltage DC12V ~ 24V
Max Output Power Up to 400W (200W @12V, 400W @24V)
Max Output Current 17A @2KHz
Channels 2 (WW and CW)
Brightness Range 0–100%
Color Temp Range 100% WW to 100% CW (C000–C100)
PWM Frequencies 500Hz, 1kHz, 2kHz, 4kHz, 7.8kHz, 15.6kHz
Control Methods Knob, RF Remote, WiFi via App
RF Frequency 2.4GHz
App Compatibility Tuya Smart, Smart Life
Voice Assistant Support Alexa, Google Assistant, Yandex Alice
Memory Function Yes
Static Power Consumption <1W
Product Dimensions L103 x W40 x H24 mm
Net Weight 70g
Warranty 5 Years (excluding misuse/overload)

Why Choose the T5-WIFI Dimmer?

Easy Installation – Simple wiring setup with clear labeling (V+, V-, CW-, WW-).
Flexible Lighting Control – Adjust warmth, brightness, and scene settings for perfect ambiance.
Energy Efficient & Safe – Low power consumption and external short-circuit protection.
Ideal for LED Strip Lights – Perfect for under-cabinet, accent, or architectural lighting.

Give your lighting the smart edge it deserves with the T5-WIFI LED Dimmer Switch by SwitchToLED – where technology meets convenience and performance.
